Field Trips
Three exciting field trips, each aligned with a different theme of the workshop, have been developed for our delegates. These will do more than teach you about the local geology and risks - they will form a core part of our workshop experience, being used to develop and test our iteas. Learn more about each one below.
By AnnWoolliams - Own work, CC BY-SA 4.0, https://commons.wikimedia.org/w/index.php?curid=120134040

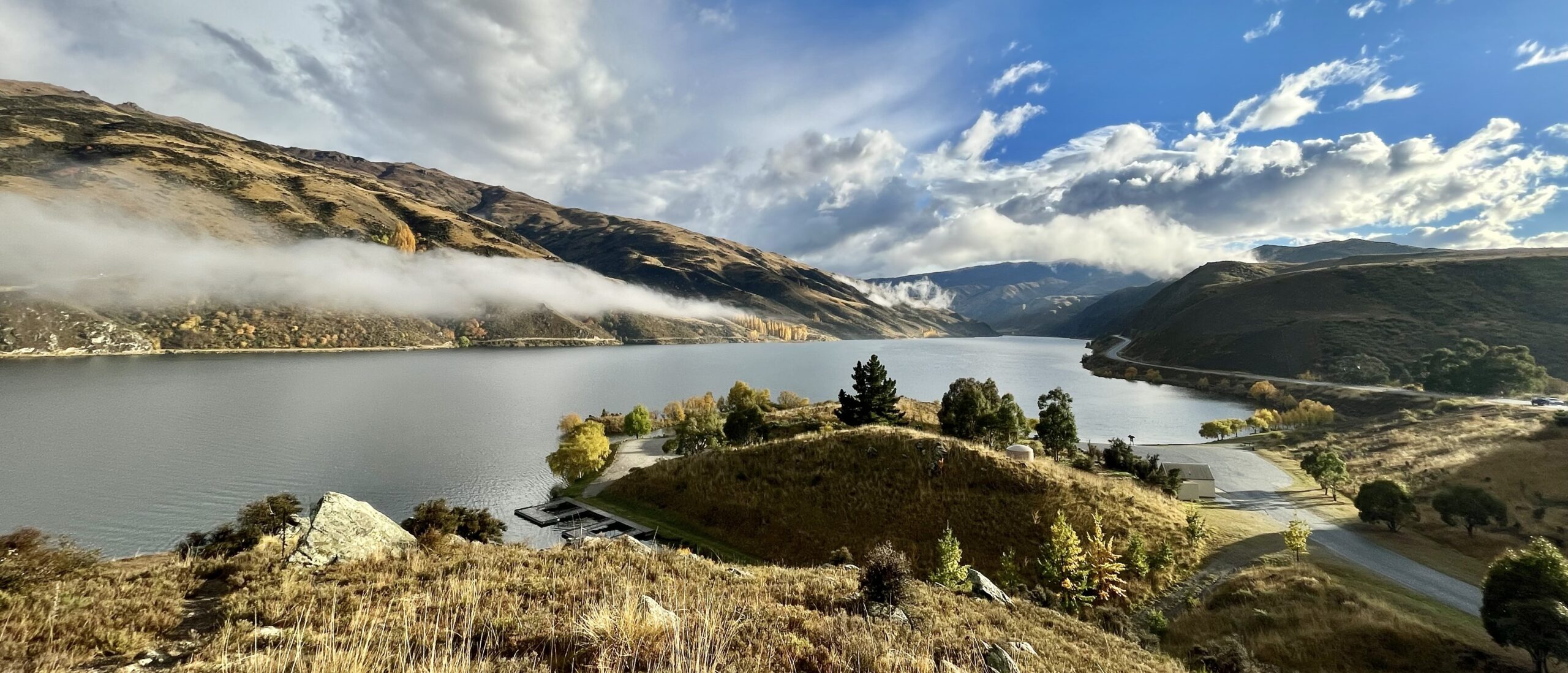

With a focus on landslide investigation and remediation, this trip to the Clyde Dam will pass through Kawarau and Cromwell Gorges. The Clyde Dam started generating power in 1993, and was the last major hydro-electric scheme to be completed in New Zealand. It was a controversial project, with widespread opposition from local residents and environmentalists.
The presence of landslides in the Cromwell gorge had long been known and shown on geological maps but were not believed to pose major problems as they were thought to be ancient and inactive. The known landslides were monitored during the construction phase, and it was discovered that some ’dormant’ slides in the Cromwell gorge were slowly moving downhill. Exploratory drilling for a new highway led to the discovery of a complex, high-pressure groundwater system, and this led on to an extensive drilling programme on other landslides.
A strategy was developed for a fast-track stabilisation program, based primarily on the use of tunnels for both investigation and drainage. All known landslides were re-mapped in detail, combined with drilling and tunnelling. Up to 40 geologists worked on the landslides over a two year period – it was the largest engineering geological investigation ever undertaken in New Zealand. Gravity drainage was the main method of remediation combined with grouting, buttressing, pumped drainage and continuous monitoring. Construction of the Clyde Dam took much longer than anticipated, with a final cost more than 45% above the original estimate.

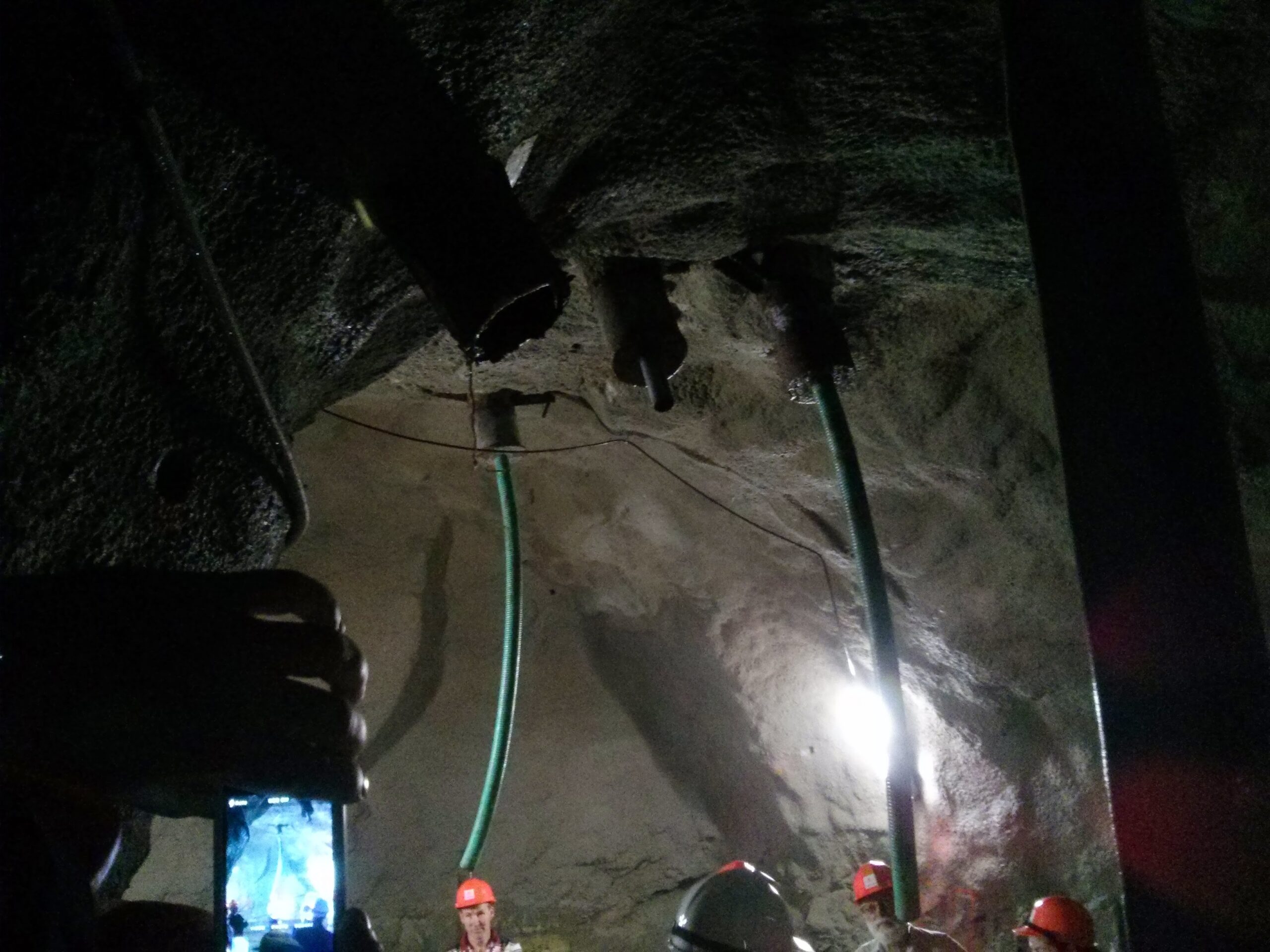

This tour will include visits to the stabilised landslides showing the scale of work undertaken and sharing lessons learned, including deep drainage tunnels, slope reinforcement, infiltration management and monitoring. We will also explore the dam, including a tour into the innovate structure designed to withstand several metres of vertical displacement on the fault that runs directly through the centre of the dam.
Background information is available here:
By Vladka Kennett - Own work, CC BY-SA 3.0, https://commons.wikimedia.org/w/index.php?curid=32905300

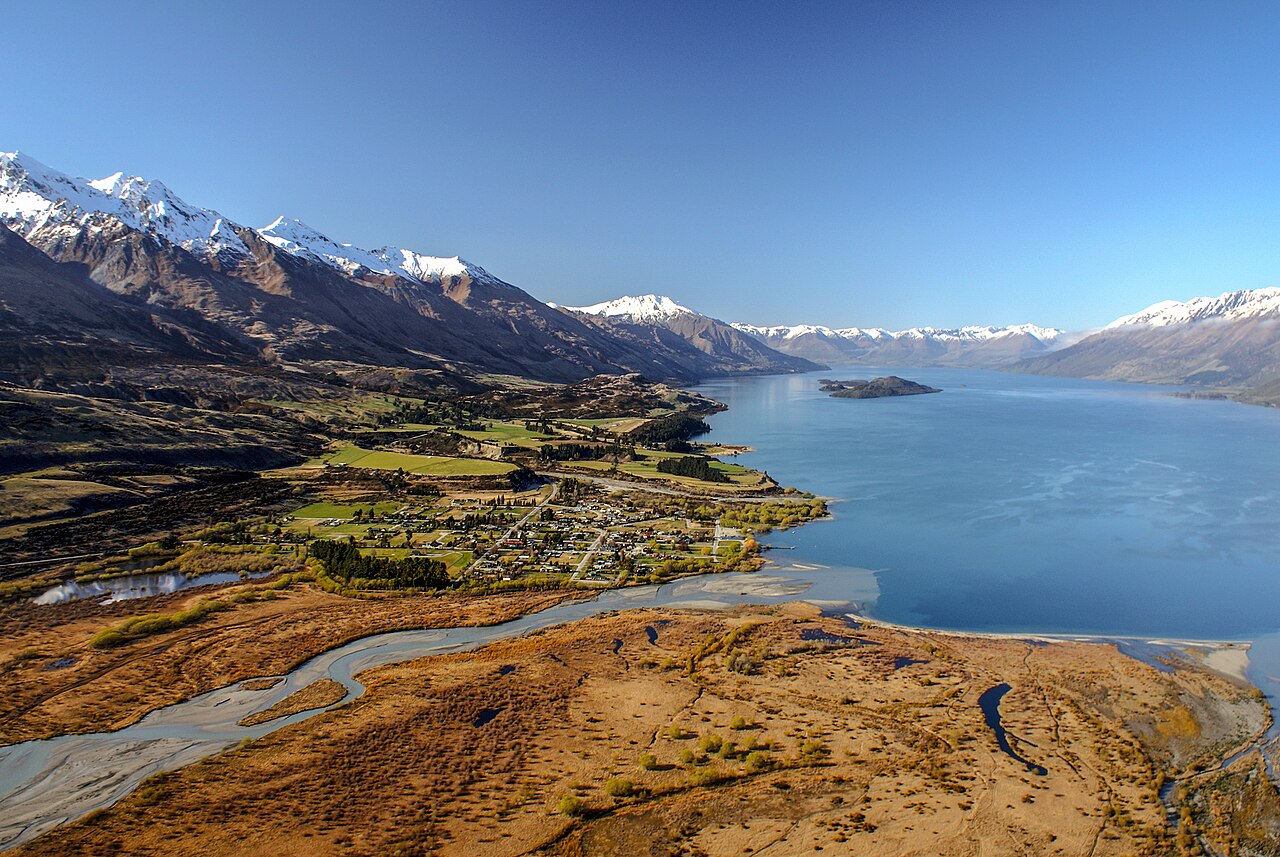

With a focus on education, natural hazard communication, and community resilience, this trip will visit the stunning village of Glenorchy. Surrounded by magnificent snow-capped mountains, Glenorchy sits a spectacular 45-minute drive from Queenstown.
Glenorchy’s soaring peaks, pristine lakes, glacial rivers, and ancient beech forests are a dream destination for outdoor adventures. Home to New Zealand’s finest hiking, the awe-inspiring scenery has formed the backdrop for films like Narnia, The Hobbit and The Lord of the Rings.
With this beauty comes risk. Glenorchy is directly exposed to hazard from flooding, earthquakes and liquefaction, and is very vulnerable to being cut off by landslides. In a large earthquake it would likely lose access to all major utilities. To manage these risks, detailed studies have been undertaken ranging from better understanding the hazard through to socio-economic impacts.
A natural hazards adaptation strategy was developed in partnership with the local community. This tour will investigate how the strategy was developed and is being implemented with the community.
Background information is available here:
By Bernard Spragg. NZ from Christchurch, New Zealand - Milford Sound. Fiordland National Park. NZ, CC0, https://commons.wikimedia.org/w/index.php?curid=65803780
Deep within Fiordland National Park lies Milford Sound, New Zealand’s most stunning natural attraction. With its magical combination of mountain peaks, ink-dark waters and superb dramatic forest-clad cliffs, it must be seen to be believed.
It is also the only fiord in New Zealand that is accessible by road. However, its remote location, bounded by steep cliffs and dense rainforest, means its special features remain unspoilt. Rain or shine, Milford Sound continues to captivate even the most experienced traveller with its beautiful surroundings, ink-dark waters, gushing waterfalls and captivating views.

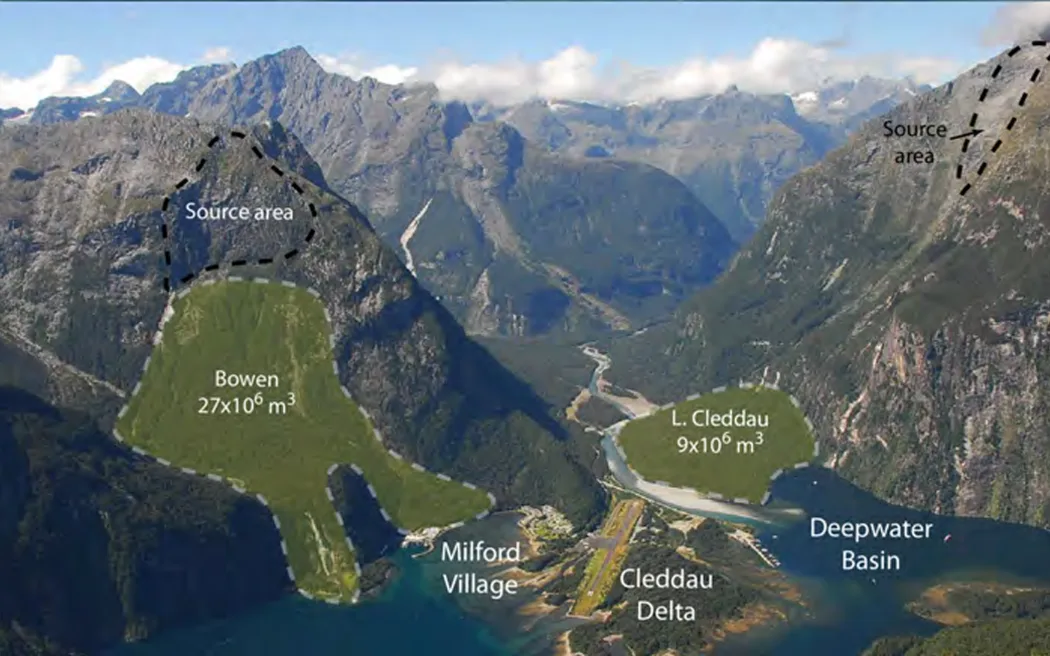

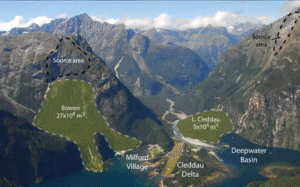

A million people a year visit Milford Sound. The nearby Alpine Fault ruptures, on average, every 330 years with a magnitude 8 earthquake, and this would likely cause a very significant rockslide. Geological evidence suggests that this has happed at least 30 times before. With only one route out, evacuation planning is extremely challenging.
A recent Master's thesis has found a Milford Sound landslide-triggered tsunami may leave no survivors, with as many as 3500 dying if the wave hits during the peak of the tourist season. The bestcase scenario shows 5.2 percent of people would survive the wave, and in this case the tsunami would have to hit at night, during the winter offseason, when only a few hundred people would be in the area.
This field trip will explore the decision-making process required to balance the public interest in visiting this natural wonder with the potential risk it poses.
Background information is available here:
